STATUS: As of December 15, 2020

• TOTAL TIME: 36.3
• LANDINGS: 21

WEIGHT:

• MAX RAMP GROSS WEIGHT: 95,000 Lbs.
• MAX TAKE-OFF GROSS WEIGHT: 94,600 Lbs.
• MAX LANDING GROSS WEIGHT: 76,800 Lbs.
• MAX ZERO FUEL GROSS WEIGHT: 57,440 Lbs.
• MAX FUEL: 41,730 Lbs.
• RAMP GROSS WEIGHT (8 PASSENGER): 95,000 Lbs.
• TAKEOFF GROSS WEIGHT (8 PASSENGER): 94,600 Lbs.

CAPABILITIES:

• FANS 1/A+ (CPDLC / ADS-C)
• Enhanced Vision System (EVS III)
• Synthetic Vision
• WAAS/LPV
• Head-Up Display
• EGPWS
• ADS-B Out (DO-260B)
• Autothrottles and Autobrakes
• Active Control Sticks (ACS)
• RNAV
• MNP
• RVSM

Performance

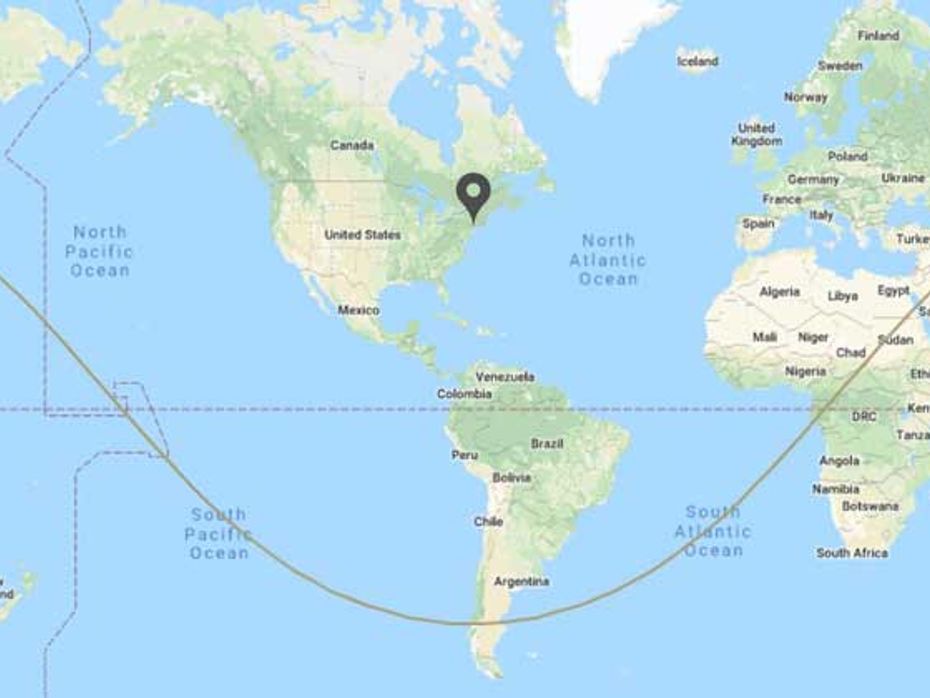

• Range- 6,500 nm, + / -5% is the theoretical maximum range, with 8 passengers with baggage (1800 lb.)
• High-Speed Cruise - Mach 0.90
• Long-Range Cruise - Mach 0.85
• Maximum Operating Mach Number (Mmo) - Mach 0.925
• FAA Takeoff Distance (Balanced Field Length) is 5,900 feet, + / -8%, @ 94,600 lbs.gross weight.
• FAA Landing Distance is 3,100 ft, +/- 8% @ 76,800 lbs. gross weight
• Initial Cruise Altitude - 41,000 ft
• Maximum Cruise Altitude - 51,000 ft

Measurements

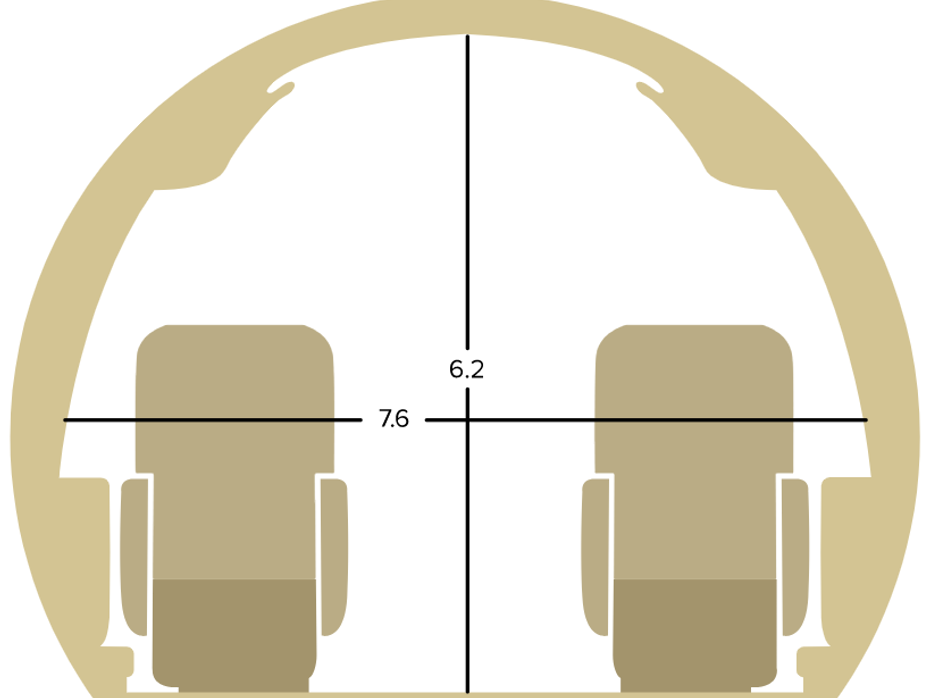

• Finished Cabin Height - 6 ft 2 in
• Finished Cabin Width - 7 ft 7 in
• Cabin Length (excluding baggage) - 45 ft 2 in
• Total Interior Length - 51 ft 3 in
• Cabin Volume - 1,884 cu ft
• Baggage Compartment Volume- 175 cu ft
• Exterior Height - 25 ft 3 in
• Exterior Length - 96 ft 1 in
• Overall Wingspan - 94 ft 2 in

Performance Information presented is model based and not necessarily specific to this aircraft

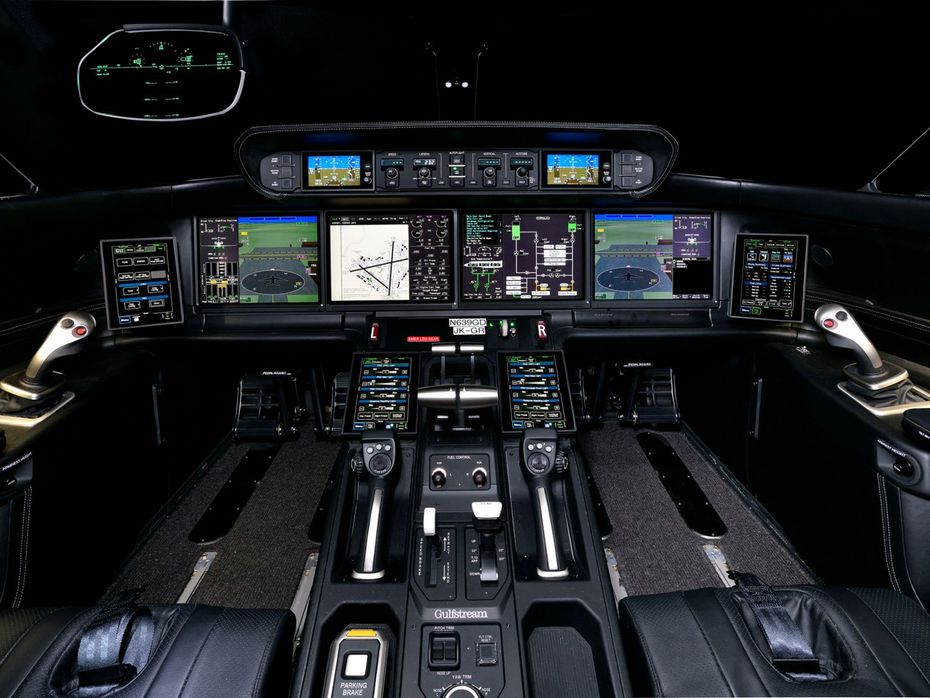

AVIONICS

• Gulfstream Symmetry/ Honeywell Primus Epic
• AUTOMATIC DIRECTION FINDER: Single Honeywell DF-855 ADF Module
• AUTO FLIGHT CONTROL: Dual Flight Control Computers
• COCKPIT VOICE RECORDER: Single FA5001 L3Harris FDR
• COMMUNICATIONS: Triple Honeywell VHF Transceivers
• DISTANCE MEASURING EQUIPMENT: Dual Honeywell DM-855 DME Module
• ELECTRONIC FLIGHT INSTRUMENT SYSTEM: Four Honeywell large 13” displays
• EMERGENCY LOCATOR TRANSMITTER: 406 MHz with Navigation Interface
• ENHANCED GROUND PROXIMETY WARNING SYSTEM: Dual Honeywell Advanced Graphics Module AGM-200
• ENHANCED VISION SYSTEM: Gulfstream EVS III System
• FLIGHT DATA RECORDER: Single L3Harris FA5001 FDR
• FLIGHT MANAGEMENT SYSTEM: Triple Honeywell FMS
• FLY-BY WIRE: Fly-by-wire flight controls
• GLOBAL POSITIONING SYSTEM: Dual GPS With Wide Area Augmentation System (WAAS) / LPV
• HEADS UP DISPLAY: Gulfstream Enhanced Vision System II (HUD and Infared Camera)
• HIGH FREQUENCIES: Dual HF Transceivers
• LONG RANGE NAVIGATION: Triple Long Range Navigation Units
• RADIO ALTIMETER: Dual BendixKing KRA-405B Radio Altimeter System
• TRAFFIC COLLISION ALERT AND AVOIDANCE SYSTEM: Honeywell TCAS II 7.1
• SYNTHETIC VISION: Honeywell SmartView™ SV-PFD
• TRANSPONDER: Dual Honeywell Mode S ATC Transponders
• WEATHER RADAR: RDR-4000 3-D Weather Radar

ADDITIONAL EQUIPMENT & FEATURES

• Two (2) 53 Amp-Hr, 28-VDC NiCad batteries
• A 28-VDC, 53 Amp-Hour FCS Electrical Backup Hydraulic Actuator (EBHA) Battery provides power for the flight controls’ emergency backup hydraulic actuators.
• Over wing and Underwing Emergency Lights
• Vertical Stabilizer Recognition Lights
• Wing Tip Taxi Lights
• Anti-Collision Beacon Light
• Anti-Collision Strobe Lights
• Taxi Lights
• Ice Inspection Lights
• Effect Lights
• Two (2) independent systems – Hydraulic System 1 and Hydraulic System
• An auxiliary DC electrically-driven pump
• Angle-Of-Attack (AOA) Protection
• Dual environmental control systems
• Temperature control of the two (2) cabin zones and flight deck zone is independent of one another
• Two (2) oxygen bottles each having a capacity of 123.4 cubic feet are provided
• Flight deck windshields and side windows are heated electrically
• Engine Fire Detection and Warning System
• Auxiliary Power Unit (APU) Fire Detection and Warning System
• Engine Fire Extinguishing System
• APU Fire Extinguishing System
• FLIR images of the real world environment are projected onto the HUD in a high resolution format
• One (1) DLMU is installed in the flight deck
• One (1) NAVCOM
• Triple Navigation capability is provided through two (2) VHF transceivers and one (1)NAVCOM unit
• Triple Inertial Reference Systems (IRS)
• Dual Altitude Heading Reference Systems (AHRS)
• Central Maintenance Computer (CMC)
• Aircraft Health and Trend Monitoring System (AHTMS)
• Air Data System
• Three (3) Overhead Panel Touch Screens (OHPTS)
• Dual, 5” diagonal high definition LCD touch screens that function as the standby flight displays.

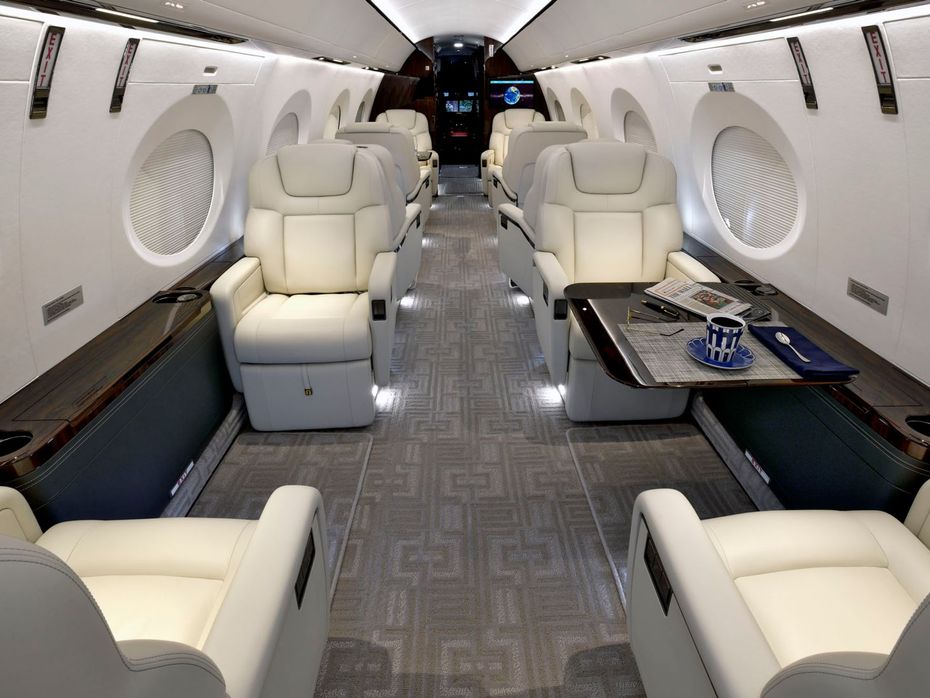

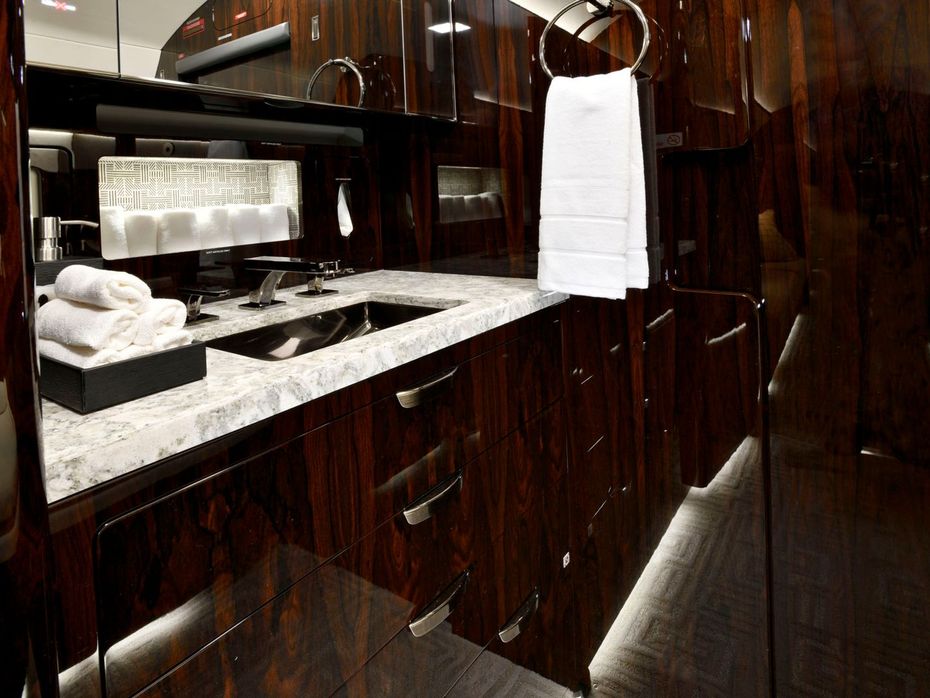

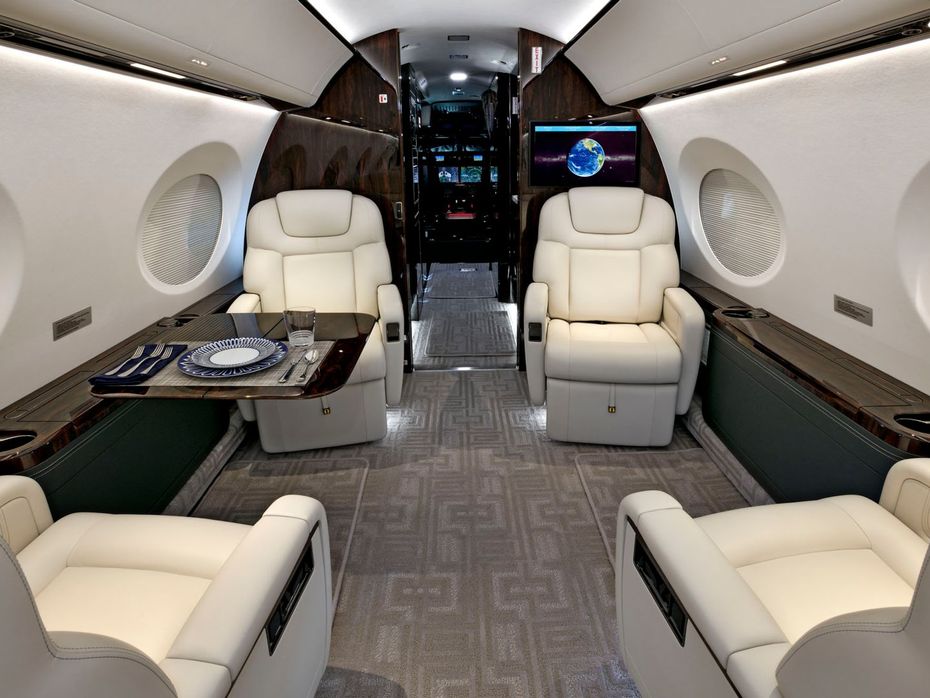

This fifteen (15) passenger Gulfstream G600 is comfortably configured with a forward 4-place berthable club (RH/LH #2 seats powered), two forward-facing single seats separating a mid-cabin 4-place berthable club. A mid-cabin electric pocket door separate the #2 and #3 zones. Aft cabin configured with opposing 80” berthable divans (LH is powered) with fwd & aft end cabinets. Six (6) single seats have tablet holders available. 24 inch HD LCD monitors installed in fwd and aft cabin bulkheads. HDMI jacks installed at RH #2 seat and LH divan end cabinet. Electric remote controlled window shades provide diffused light and black-out functions. USB charging ports throughout cabin. Aft Lav w/ bidet seat

Additional CabinView features through JetConneX High-Speed Data w/ wireless LAN. Entertainment includes Gulfstream Cabin Management System, twelve (12) cabin speakers powered by two (2) amplifiers. 115V/60Hz outlets installed in Fwd Lav, galley, galley annex, each individual seat, each divan fwd end cabinets and aft lav.

Galley equipment includes coffee maker and Nespresso espresso maker, microwave and convention ovens, sink and Optimized Galley Storage Option complied. RH Galley annex includes refrigerator, extended ice drawer, touch-screen control panel, telephone handset and additional storage. Quartz polymer countertops throughout. LED effects lighting throughout.

ENTERTAINMENT

• High Definition (HD) Audio / Video Distribution System
• 24-inch widescreen HD LCD monitors in the forward & aft cabin
• Cabin audio system with Bose headphones
• Gulfstream CabinView™ Passenger Flight Information System

COMMUNICATION

• Inmarsat Jet ConneX KA Broadband Internet
• Wireless Local Area Network (LAN) System
• GoGo Business Aviation Iridium Satellite Telephone System

GALLEY DESCRIPTION

• Refrigerator and Ice Drawer
• Convection Oven
• Microwave Oven
• Coffee Maker

Interior Last Updated/Refurbished In 2016

Original Paint. Matterhorn White

Exterior Last Painted In 2018
